MixerRemix Vestax PMC-05 Pro Series PSU Upgrade

The perfect upgrade for your PMC-05 Pro series mixer (Pro I, Pro II, Pro III, Pro Q)

If your mixer won’t power up or you wish to protect your mixer from accidental damage this is what you need.

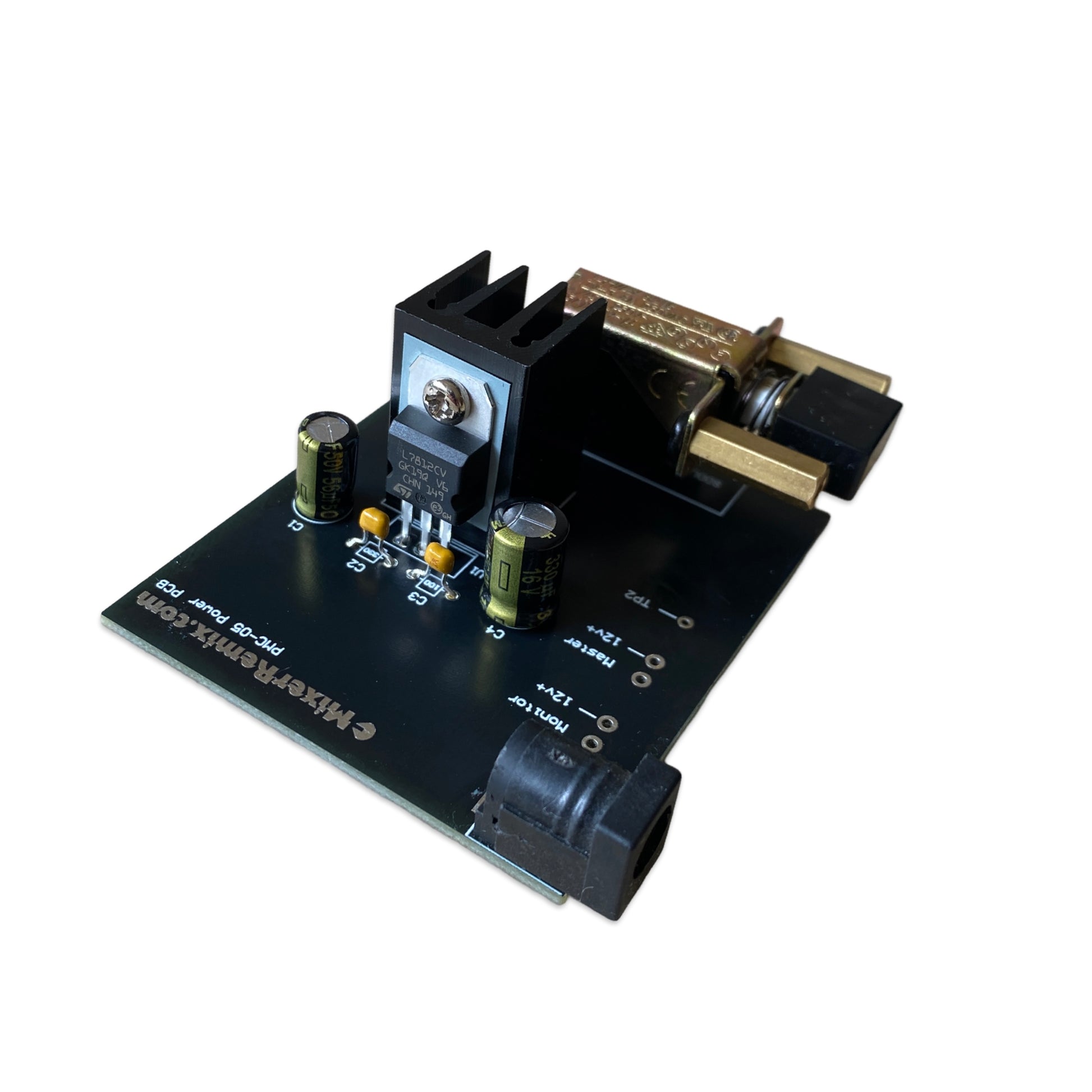

This board upgrades the stock PSU and can be swapped over in minutes with very little soldering, only 2 connectors need to be swapped from the original board to this.

The circuit has been designed to run off a 12v linear regulator, a much simpler circuit than previous configurations. With less components there is less to go wrong and the regulator is a common device which can easily be replaced in the future.

Unlike previous models this board has polarity protection built in to prevent you damaging the mixer if a wrong power supply is inserted. When the correct polarity 15V DC power supply is connected a green LED lights up. If the incorrect polarity supply is connected a diode will block the circuit from completing and the LED will go off.

After thorough testing a mixer with this PCB can be subjected to reverse voltage multiple times with zero damage.

Included:

1x Fully populated PCB

2x Panel standoffs

2x Mounting screws
